Equations of the form f(x) = g(x) can be solved graphically by plotting the graphs of y = f(x) and y = g(x). The solution is then given by the x-coordinate of the point where they intersect.
Worked Examples
Find any positive solutions of the equation
x2 = + x
by a graphical method.
Completing the table below provides the points needed to draw the graphs y = x2 and y = + x.
| x | 0 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 |
| x2 | 0 | 0.25 | 1 | 2.25 | 4 | 6.25 | 9 |
| + x | Infinity | 2.5 | 2 | 2.17 | 2.5 | 2.9 | 3.33 |
Where necessary the values have been rounded to 2 decimal places.

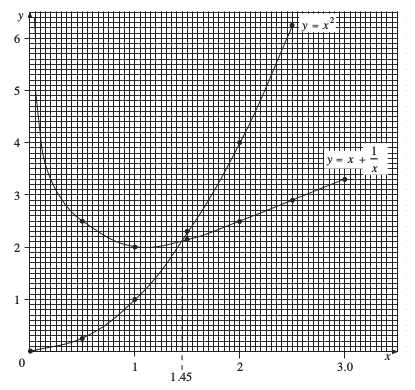

The graph below shows y = x2 and y = + x.
The curves intersect where x = 1.45 and so this is the solution of the equation.
The graph below represents the function
f(x) = x2 − 3x − 3
Use the graph to determine
the value of f(x) when x = 2
f(2) = −5
the value of f(x) when x = −1.5
f(−1.5) ≈ 3.6
the value of x for which f(x) = 0
Intercepts with x-axis are x = −0.8, 3.8
the minimum value of f(x)
fmin = −5.3
the value of x at which f(x) is a minimum
x = 1.5
the solution of x2 − 3x − 3 = 5
x = −1.7 and 4.7
the interval on the domain for which f(x) is less than −3.
0 < x < 3
Note
The domain of a function is the values of x for which the function is defined. This is covered in Unit G4.
Given that y = 2x2 − 9x + 4
copy and complete the table below
| x | −2 | −1 | 0 | 2 | 4 | 6 |
| y | 30 | 4 | 0 | 22 |
Missing values:
f(−1) = 2 × (−1)2 − 9 × (−1) + 4 = 15
f(2) = 2 × 22 − 9 × 2 + 4 = −6
| x | −2 | −1 | 0 | 2 | 4 | 6 |
| y | 30 | 15 | 4 | −6 | 0 | 22 |

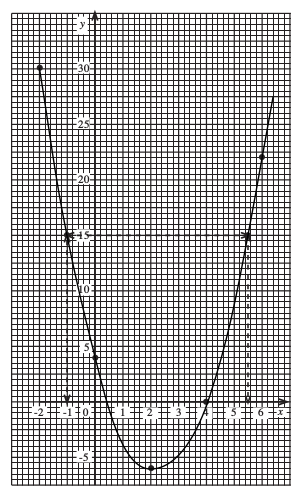

using a scale of 1 cm to represent 1 unit on the x-axis and 2 cm to represent 5 units on the y-axis, draw the graph of y = 2x2 − 9x + 4 for −2 ≤ x ≤ 6
use your graph to solve the equation
2x2 − 9x + 4 = 15
Using the intersection of y = 15 with y = 2x2 − 9x + 4 gives estimates of the solution of
2x2 − 9x + 4 = 15
as x = −1 and x = 5.5 (see graph above).
The grid on the following page shows the line, l, which passes through the
points
Determine the gradient of the line, l.
Gradient = = = 1
Write down the equation of the line, l.
y-intercept is −1, so equation of l is
y = −1 + x
(Alternative method: equation is of the form y = mx + c = x + c;
| to pass through the point (0, −1), −1 = 0 + c | ⇒ c = −1 |
| ⇒ y = x − 1) |
The table below shows three of the values of f(x) = x2 − 4x + 3 for values of x from 0 to 4.
| x | 0 | 1 | 2 | 3 | 4 |
| f(x) | 3 | −1 | 0 |
Copy the table and insert the missing values of f(x).
| x | 0 | 1 | 2 | 3 | 4 |
| f(x) | 3 | 0 | −1 | 0 | 3 |

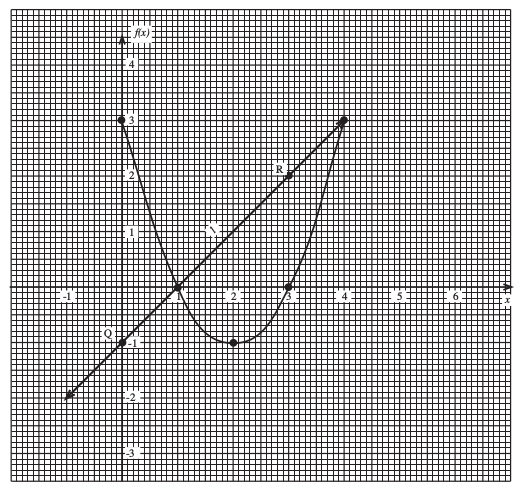

On a copy of the grid below, draw the graph of f(x) = x2 − 4x + 3.
Using the graphs, write down the coordinates of the points of intersection of the line, l, and the graph of f(x).
Points of intersection at (1, 0) and (4, 3).
